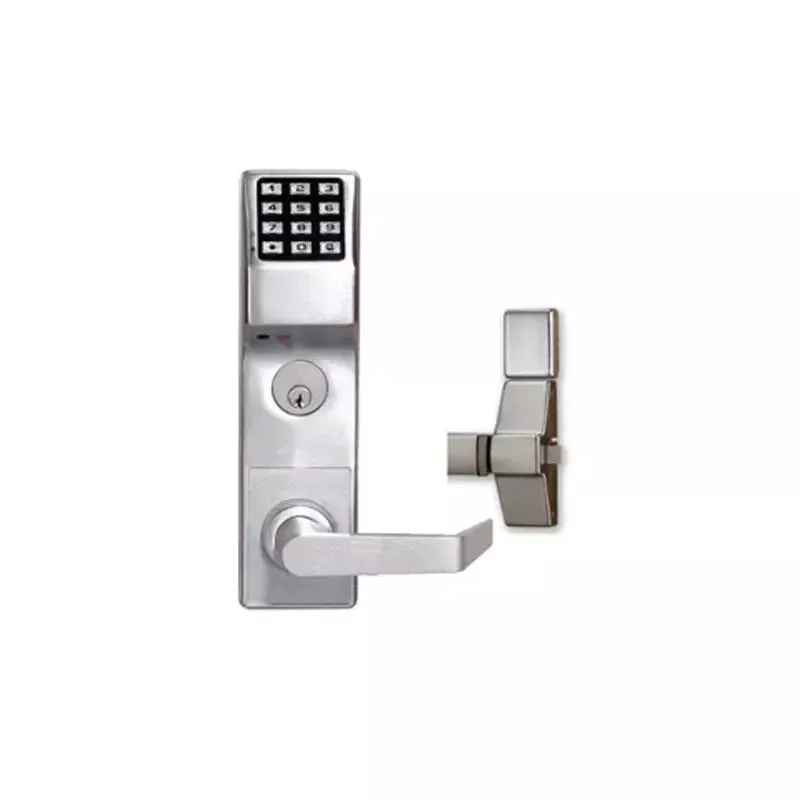

Grade 1 Electronic Exit Trim + Rim Panic Device Bundle – Trilogy ETDL-27 (Keypad) with Von Duprin 99 Rim Exit Device, Non-Handed, Weather-Resistant Keypad, Includes Rim Cylinder Adapter, Satin Chrome (US26D/626)
This bundle pairs Alarm Lock’s Trilogy ETDL-27 keypad exit trim with the industry-standard Von Duprin 99 rim exit device. You get Grade-1 durability, all-metal weather-resistant keypad access, and simple at-door programming, matched with a heavy-duty panic bar for high-traffic egress doors in schools, healthcare, and commercial facilities.
Product Specs
- Vendor Alarm Lock (NAPCO) + Von Duprin (Allegion)
- Bundle SKU (example) ETDL27S1G-26D-V99-36
- Unit of Measure Each (bundle)
- Grade / Listings ANSI/BHMA Grade 1; UL 305 / UL 10C panic (per VD 99)
- Users / Codes (ETDL-27) Up to 100 (Master/Manager/User hierarchy)
- Keypad (ETDL-27) All-metal, weather-resistant; 12-button T2 platform
- Power (ETDL-27) 5 AA alkaline; long service life; low-battery warning
- Exit Device (included) Von Duprin 99EO Rim, 36 (field-sizeable), 299 strike
- Handing Non-handed; field reversible
Finishes (Top Sellers)
-
US26D (626) – Satin Chrome
-
US10B (613) – Oil-Rubbed / Dark Bronze
-
US3 (605) – Bright Brass
*Finishes apply to both ETDL-27 trim & Von Duprin 99 device when ordered to match.
Technical Specs
ETDL-27 Exit Trim
- Platform Trilogy T2 (keypad) for exit devices
- Programming At keypad; optional DL-Windows/AL-DTM III
- Construction Clutch mechanism; vandal-resistant lever
- Override Rim cylinder, Schlage C (adapter included)
- Environment Interior / exterior; weather-resistant keypad
- Audit & Tools Hierarchy, event logs; PC sync via optional hardware
Von Duprin 99 Rim Exit Device
- Type 99EO Rim, grooved case, 36 bar (48 available)
- Rating ANSI/BHMA A156.3 Grade 1; UL 305; UL 10C panic
- Latch / Strike 3/4 deadlocking latch; includes 299 strike
- Door Width 2 4 -3 (36 device); 4 with 48 bar
- Handing Non-handed (most configurations)
Compatibility (ETDL-27 trim): Kits available for Von Duprin 98/99, Corbin ED5000, Yale 7100, Dorma 9300, Arrow 3800, Sargent 8800/8888, Precision 1100/2100, Cal-Royal 9800, and more. Use the ETDL exit-device template matrix to select the correct kit code.
Docs & Templates Videos
For the full 98/99 installation series, see Von Duprin’s installation playlist linked in Docs & Templates.
Installation Difficulty
Level 4 – Advanced Tech: Pro install recommended. Requires precise device templating, push-bar alignment, exterior trim integration, and functional egress testing. Battery-powered (no building wiring).
(
