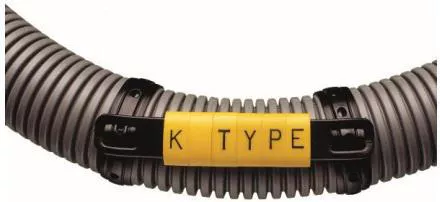

K-type markers are used to identify wire bundles, cables, pipes and conduits. The oval shaped profile has been designed to allow markers to be accurately positioned onto a carrier strip. The marker and carrier strip assembly is attached to the substrate using cable ties. K-type markers are ideal for post termination applications or where retro fitting is required. Markers are supplied as internationally colour coded yellow with pre-printed black legends. K-type markers come in one standard size to fit carrier strips that can hold from 7 to 18 markers and are made from a plasticized PVC material. Suitable for industrial applications. Operating Temperature Range -45 to 70°C. Self-extinguishing. Resistant to key Industrial fluids, including those used in mass transit, aviation and military. Post termination cable identification. Identification of large cables, wire bundles, pipe work and conduit. Installation friendly, easy to replace, ideal for retro fitting and repairs. Electric and electronic equipment, light industrial.
Specifications
| Brand Name | TE Connectivity | Item Name | Cable Marker |
| Type | Oval Shaped, Self-Extinguishing, Type K | Legend | C |
| Legend Color | Black | Background Color | Yellow |
| Material | PVC | Number of Markers | 18 |
| Series/Model | 1361 | Marker Height | 65 mm |
| Marker Width | 5.8 mm | Lettering Field | 4 mm |
| Temperature Rating | -45 to 70 °C | For Use With | Carrier Strips |
| Packaging Quantity | 500/Roll | Standards | REACH, RoHS Compliant, BS 6746C:1993, IEC 60304 |
| Application | For Identifying Wire Bundles, Cables, Pipes and Conduits and are Ideal for Post Termination Applications or Where Retrofitting is Required |
