Type 3 Hinge Kit For Heavy Duty Pivot Door Slides

Original price was: $21.40.Current price is: $14.62.

Sale!
SKU: KJOIKF53 Category:
Share
  • This hinge kit works with our Heavy Duty Pivot Door Slides.
  • It is used for “flush inset” doors (no face frame) with a door thickness from 15/16″ to 1-1/4″.
  • They are sold by the set. A set includes 2 hinges, 2 mounting plates, 4 mounting plate spacers, all necessary screws and mounting plate covers.

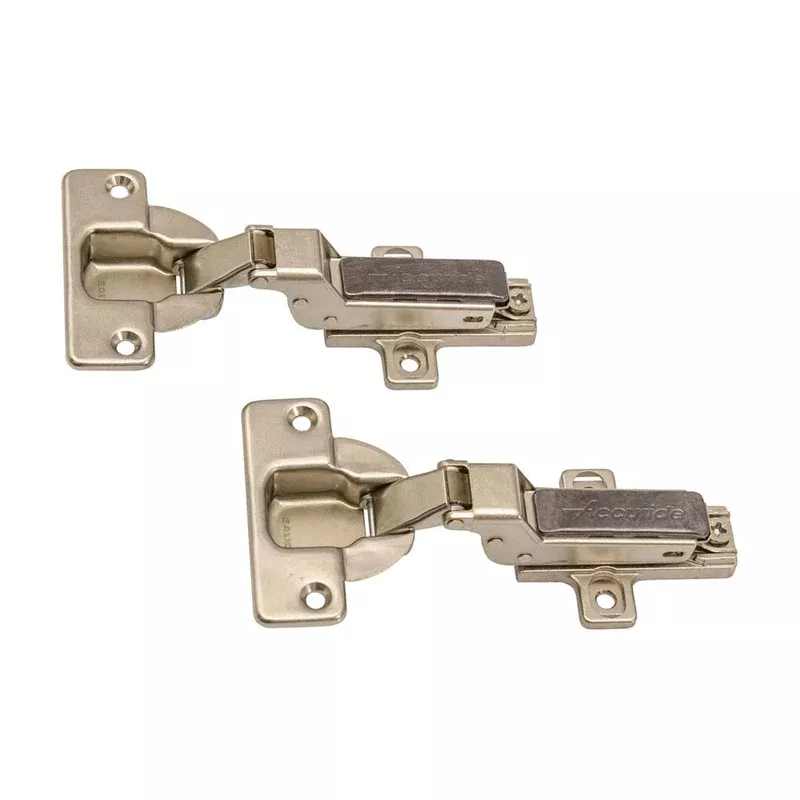

  • Hinges are 40mm half cranked hinges, plates are 3 mm plates. Height to upper pivot point without spacer attached is 1-1/8″. Height with one spacer attached is 1-1/4″. With both spacers attached, it is 1-3/8″.
  • Use 3 hinges per door for door heights from 36″ to 47″.
  • Use 4 hinges per door for door heights over 47″ to 59″.
  • Use 5 hinges per door for door heights over 59″ to 71″.
  • Use 6 hinges per door for door heights over 71″.
