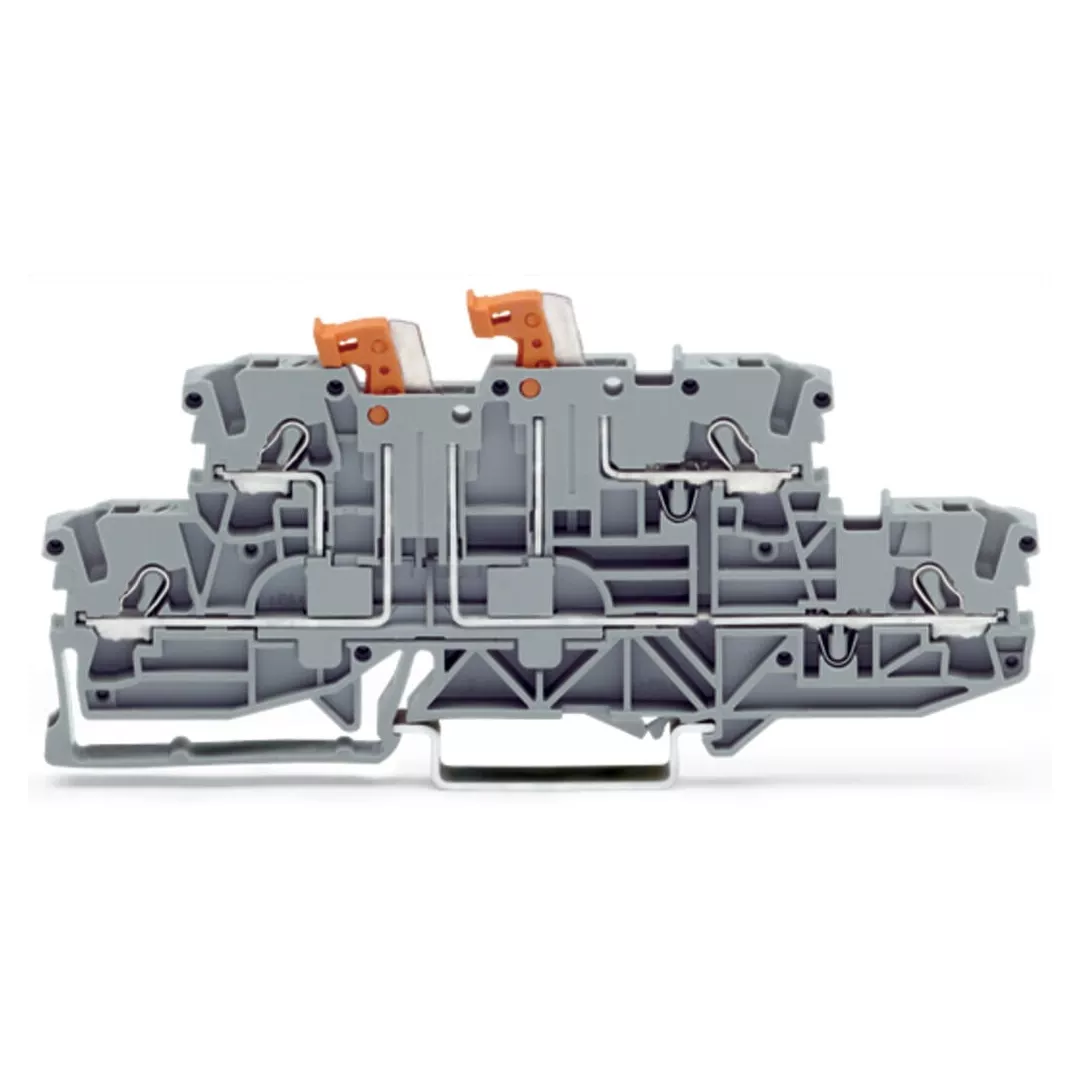

Enjoy fault-free electrical installations with this double-deck terminal block (item number 2002-2951). The double-deck terminal block also serves as a disconnect terminal block. Conductors should only be connected to this double-deck terminal block if their strip length is between 10 mm and 12 mm. This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This double-deck terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². It has two levels. Four potentials can connect using the four clamping points The gray housing is made of polyamide (PA66) for insulation. These function terminal blocks are mounted using DIN-35 rails.. This product is designed for specific Ex applications (please refer to the product datasheet).
Specifications
| Brand Name | Wago | Item Name | Terminal Block |
| Type | 2-Level | Voltage Rating | 400 V |
| Amperage Rating | 16 A | Conductor Size | 2.5 mm² |
| Mounting Type | 35 mm DIN Rail | Power Rating | 0.341 W |
| Wire Strip Length | 10 – 12 mm | Connection Type | Push-In Cage Clamp |
| Temperature Rating | -60 to 105 °C | Block Material | Polyamide |
| Color | Gray | Dimensions | 0.205 in W x 1.654 in D x 4.252 in H |
| Standards | cURus Certified, CCA Approved, KEMA-KEUR, ATEX Approved, CE Certified, UK-CA, ABS Approved, DNV GL Approved, CCC Certified, IECEx Approved, RoHS Compliant, UL94 V0 |
