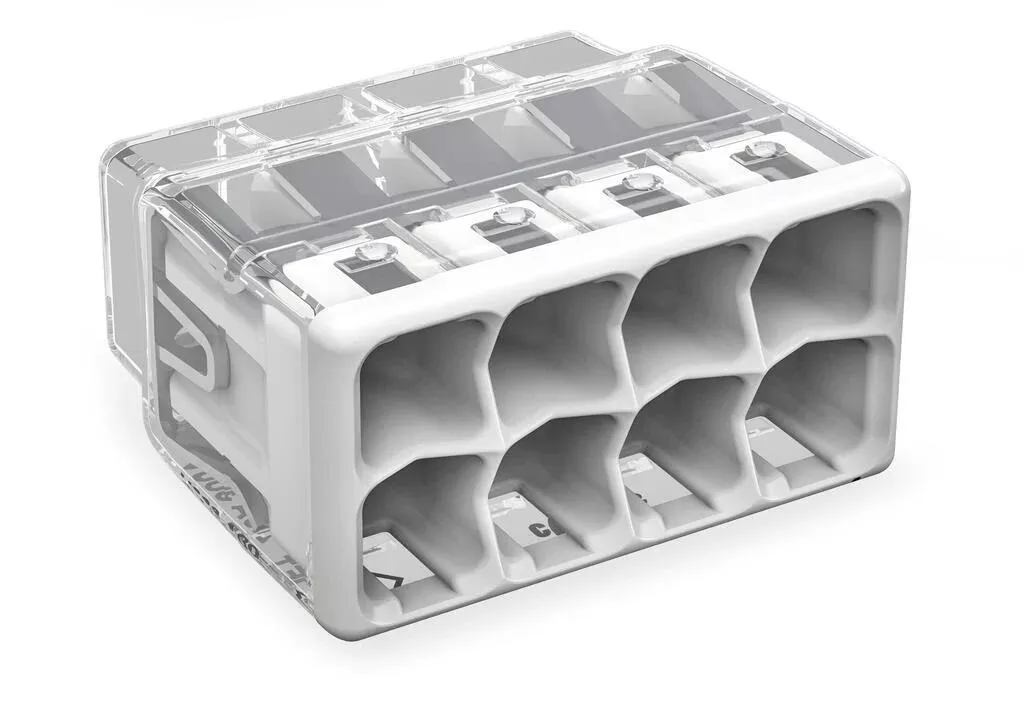

PUSHWIRE®splicing connector; 8-conductor; light gray Box of 40 pieces
Specifications
| Brand Name | Wago Corp | Sub Brand | Pushwire® |
| Item Name | Splicing Connector | Type | Compact |
| Voltage Rating | 600 V | Amperage Rating | 32 A |
| Conductor Size | 20-12 AWG Solid, 18-12 AWG Stranded | Series/Model | 2773 |
| Number of Conductors | 8 | Connection Type | Push-In |
| Color | Light Gray/Transparent | Contact Material | Copper |
| Insulation Material | Polycarbonate | Length | 0.732 in |
| Temperature Rating | 85 °C | Standards | UL 486C, UL 467, UL 94-V2 Flammability Rating |
| UPC | 055143927431 |
