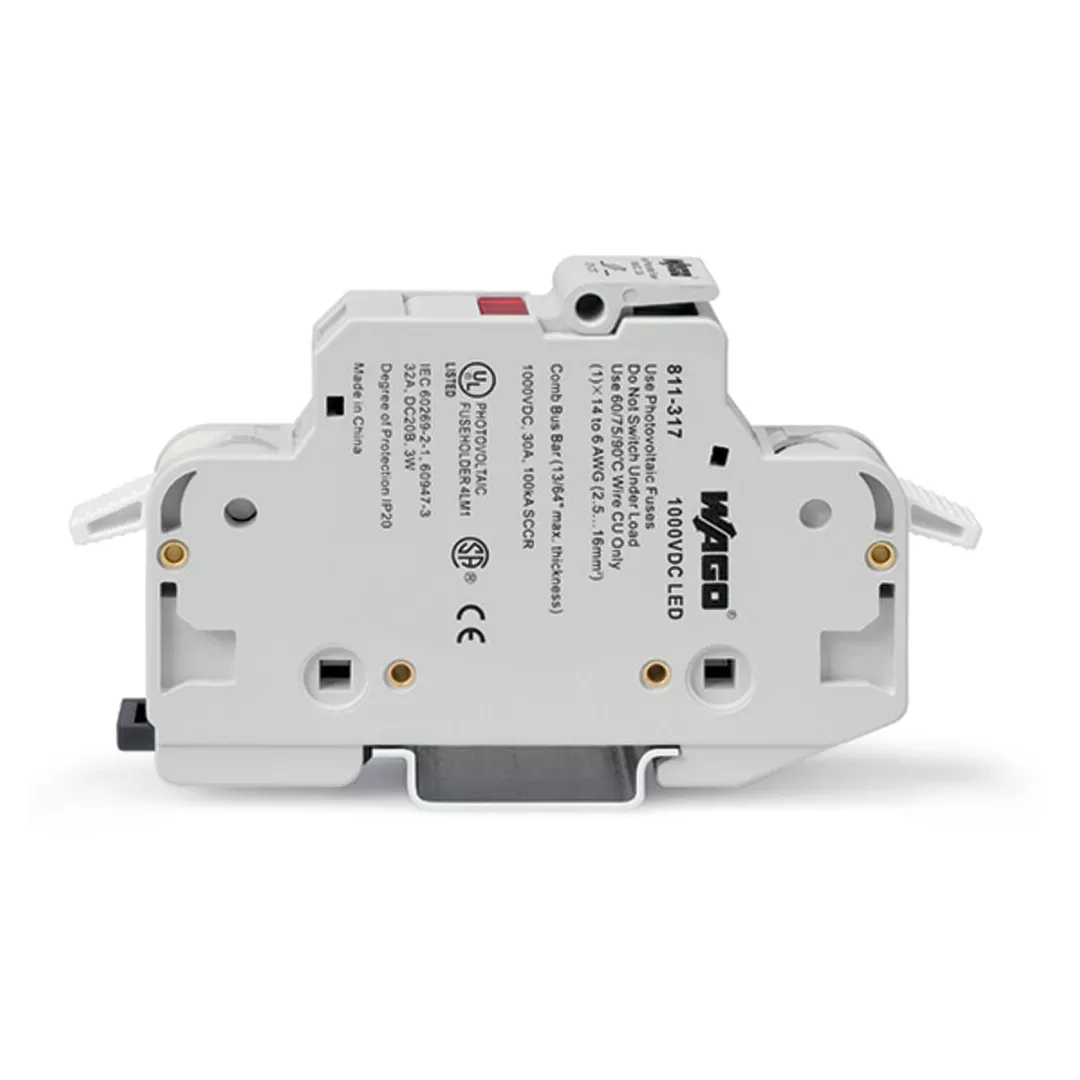

This fuse terminal block (item number 811-317) is designed for quick and easy connections. Strip lengths must be between 12 mm and 13 mm when connecting conductors to this fuse terminal block. This product features conductor terminals and utilizes CAGE CLAMP®. Our celebrated universal connection known as CAGE CLAMP® is industry-leading when it comes to connection technology and electrical interconnections. This fuse terminal block is suitable for conductor cross sections ranging from 2.5 mm² to 16 mm². It comes with one level and two clamping points that you can use to connect a single potential / 1 pole. The light gray housing is made of polyamide (PA66) for insulation. These function terminal blocks are mounted using DIN-35 rails..
Specifications
| Brand Name | Wago Corp | Item Name | Fuse Terminal Block |
| Type | 2-Conductor, 1-Level | Voltage Rating | 1000 V |
| Amperage Rating | 32 A | Number of Poles | 1 |
| Conductor Size | 6 AWG | Mounting Type | 35 mm DIN Rail |
| Power Rating | 3 W | Wire Strip Length | 12 – 13 mm |
| Connection Type | Cage Clamp | Temperature Rating | -35 to 85 °C |
| Block Material | Polyamide | Color | Light Gray |
| Dimensions | 0.689 in W x 2.165 in D x 4.134 in H | For Use With | 10 x 38 mm Cylindrical Fuses |
| Standards | CE Certified, RoHS Compliant, UL94 V0 | Application | For Photovoltaic |
| UPC | 044918106935 |
