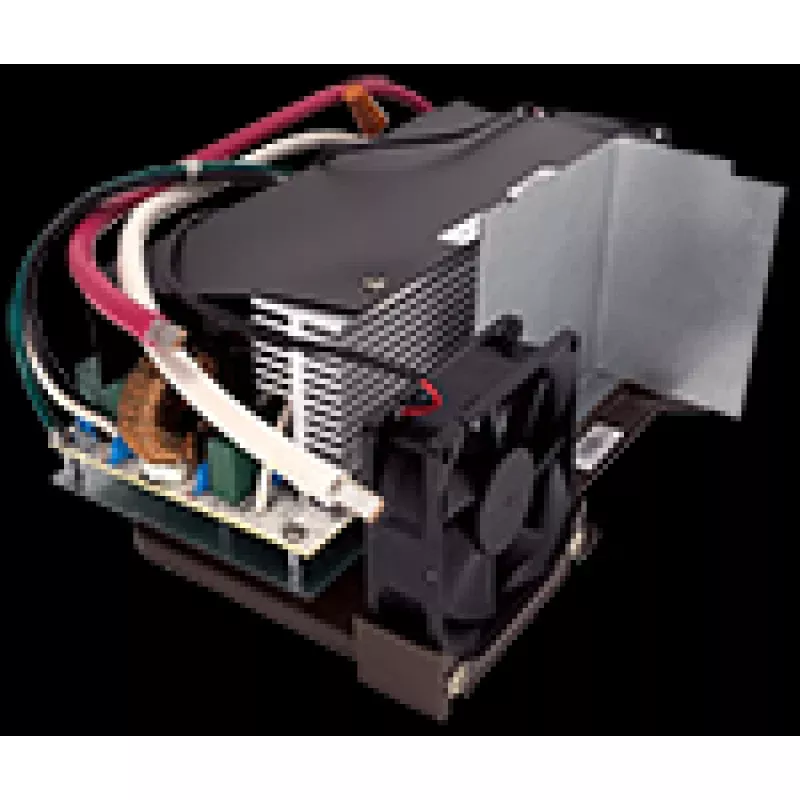

The WFCO WF-8975-AD-MBA Main Board Assembly is the perfect choice for your RV power needs. This 75 Amp board features:
- Lithium Battery Auto-Detect
- Built-in Battery Charger
- LED Status Indicators
- Built-in Surge Protection
- Reverse Polarity Protection
- Over-Temperature Protection
- Over-Voltage Protection
This board is designed to provide reliable power for your RV and is easy to install and maintain.
| Output Power |
1300 W |
|---|---|
| Input Voltage/Hz |
105-130 VAC, 60 Hz |
| Weight |
8 Lbs. |
| Dimensions |
7 1/16″ W x 3 7/8″ H x 9 1/2″ D |
| Output Current |
75 A |
| Converter Type |
Three-Stage Converter Charger |
| Voltage Output |
Lead Acid 13.2 14.4V DC Range, Lithium-Ion 13.2 14.6 VDC, 13.6 14.6 VDC |
| Bulk Mode (Quick Charging Voltage) |
14.4V DC (quick charging voltage) |
| Absorption Mode (Nominal Voltage) |
13.6V DC (nominal voltage) |
| Float Mode (Trickle Charge Voltage) |
13.2V DC (trickle charge voltage) |
| Over Current |
Yes |
| Over Temperature |
Yes |
| Over Voltage |
Yes |
| Reverse Polarity |
Yes |
| Cooling System |
Yes |
| Mounting Plate Material |
Plastic |
| Mounting Plate Color |
Black, Brown |
| Certifications |
FCC |
